Initial Motivation

• Used A/V gear: missing remote.
• Some functions require the remote.
  (VHS Rewind?! O.O)

Requirements

• Must be non-proprietary (HW+SW).
• HW+SW work independent.
• Work beyond end-of-life.
• Any OS.
• Any IR remote.
• Map to (shell) programs.

Serial Port

 IC1 = TSOP 1738
 +-----------------------+ 3                           R1 (4k7)
 |               data -> +--------------------------------+------------o DCD
 |                       |                 _______        |
 |      ______________   |                | 78L05 |      | |   D1 (1N4148)
 |     /                 |    +-----+-----|OUT  IN|--+   | |
 |    (                  | 2  |     | +   |__GND__|  |    |      | /|
 |     \______________ + +----+   -----       |      +----+------|< |--o RTS
 |                       |        -----       | IC2              | \|
 |                       | 1        |         |
 |                     - +----------+---------+------------------------o GND
 +-----------------------+      C1 (4.7µF)

Source: lirc.org

Serial Port

Well, but there is no more serial port…

What about USB?!

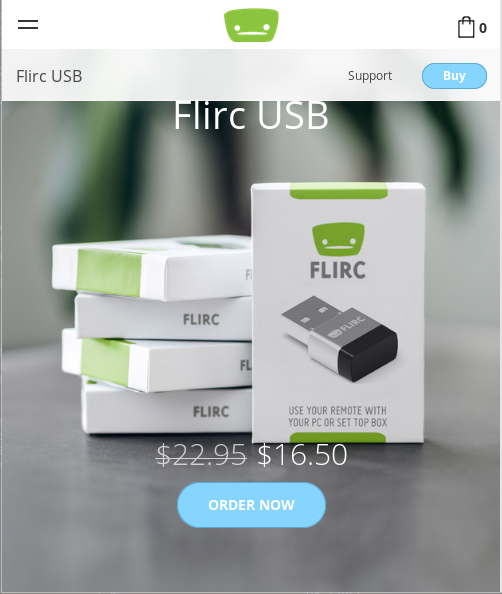

Flirc?

Flirc: Don’t.

• It’s NOT LIRC!
• Uses FOSS, but ain’t open/FOSS itself.
• Patented in Feb 2016

USB to Serial/UART

• FTDI ^(FT232RL)
• CP21xx ^(CP2102)

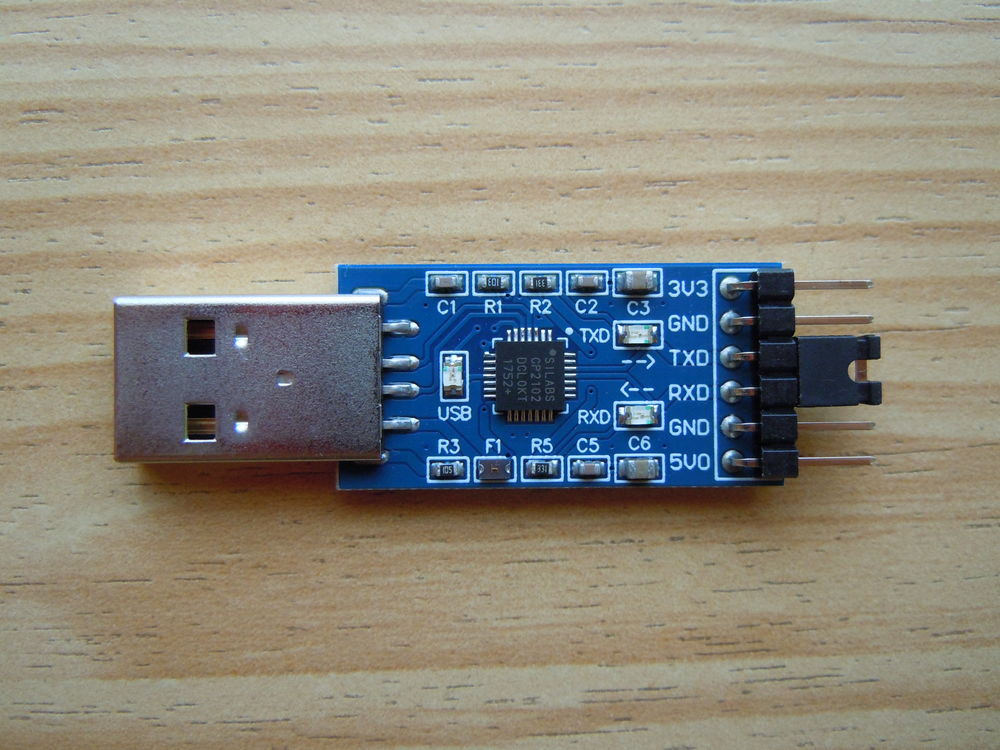

CP2102

Didn’t work.

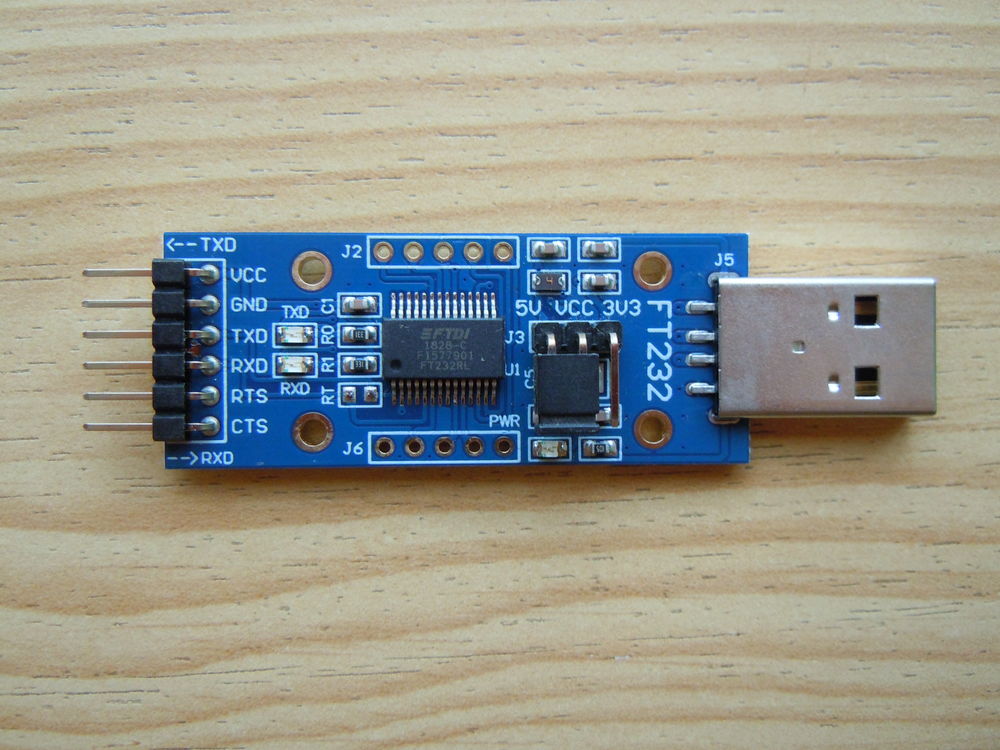

FT232RL

Didn’t work reliably…

Raspberry Pi

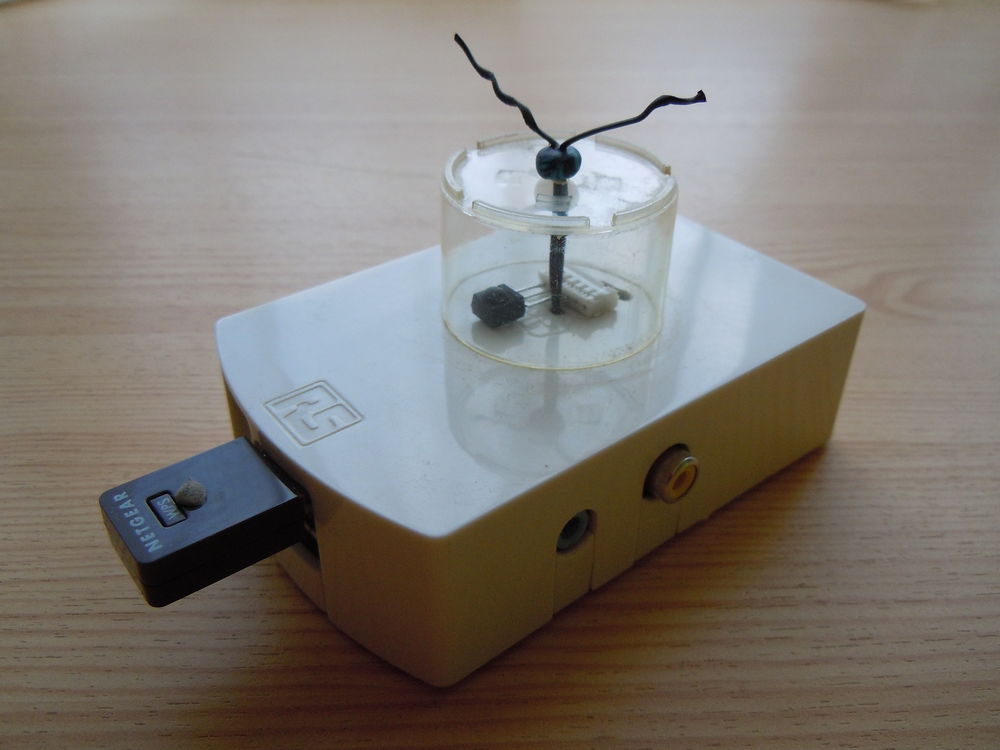

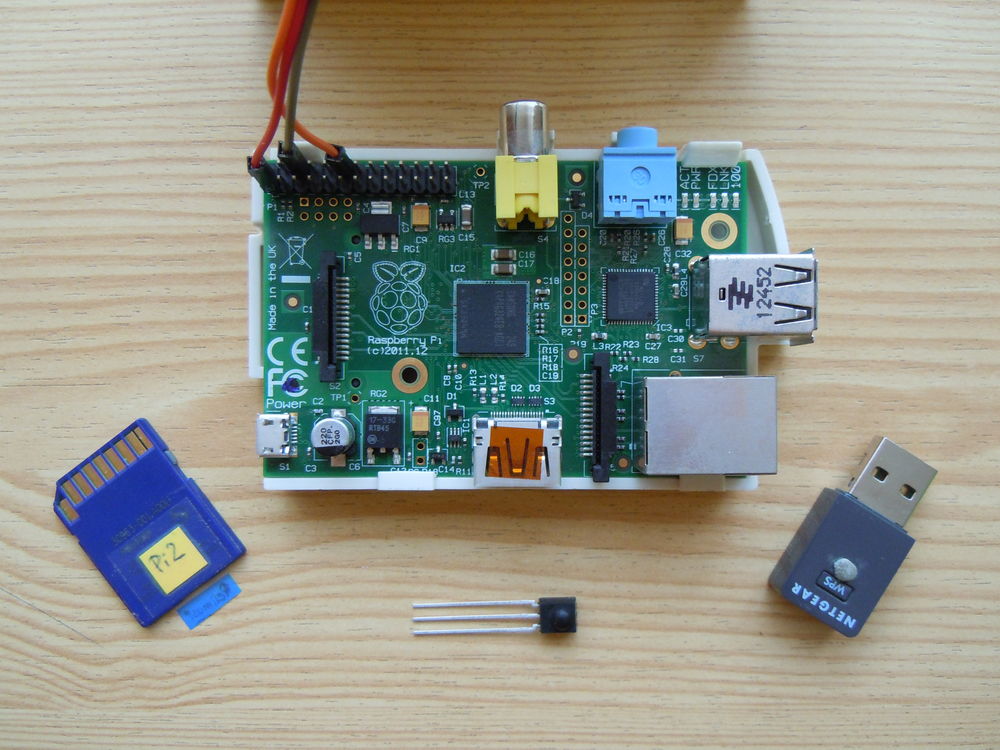

Receiver (RPi 1)

Receiver

Sender

Yes, it’s a prototype.

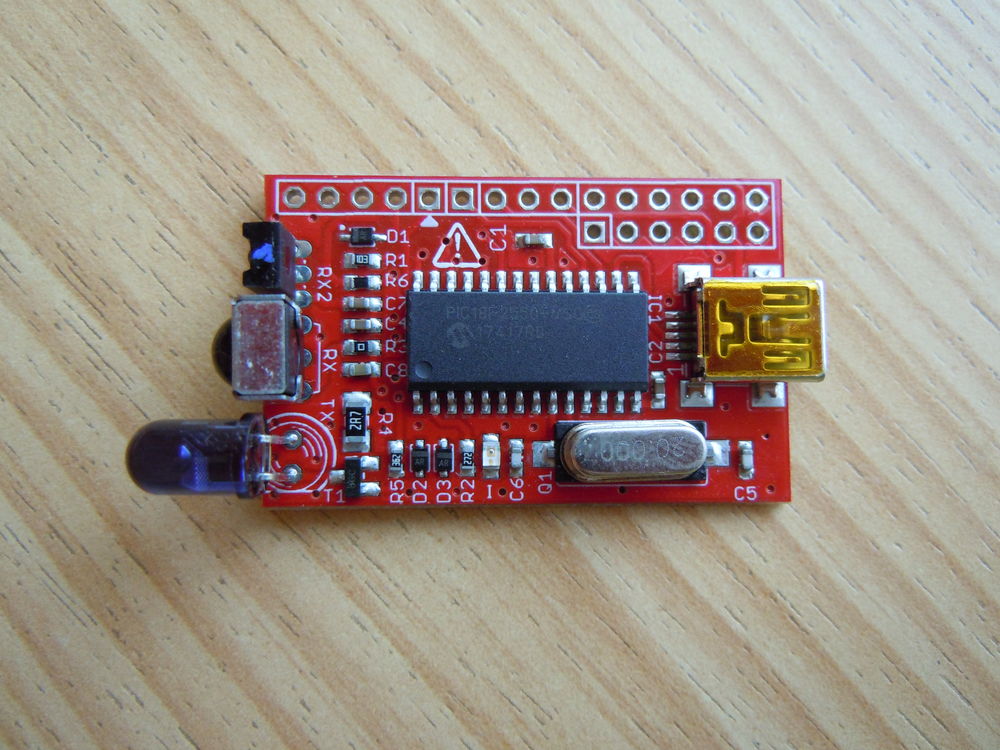

IRToy

What about non-RPi?

IRToy

• DangerousPrototypes
• ca. 20$ at Seeedstudio
• Timing on-board
• Schematics
• FOSS (Github)
• “Just works”
• As sender + receiver

LIRC

Configuration?

lircd

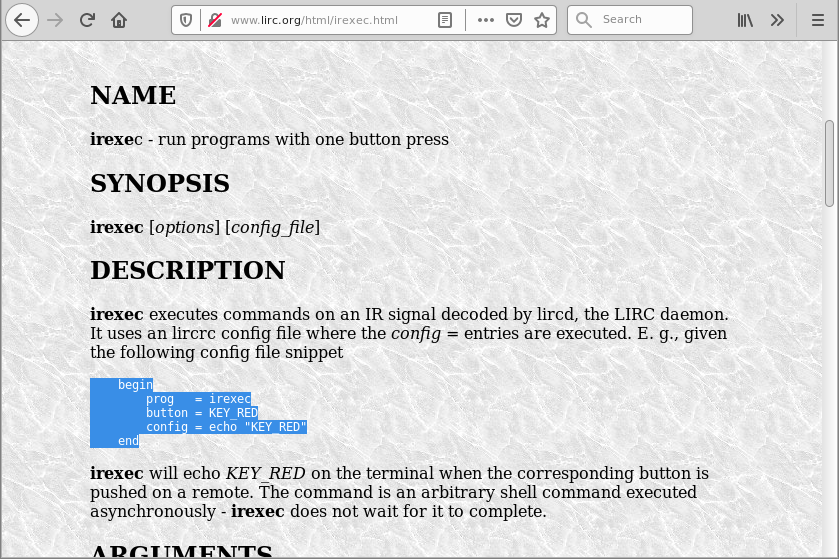

irexec

HARCToolbox

• Website: harctoolbox.org
• Girr: Universal format for IR commands/remotes
• IrScrutinizer
• IR signal resources
• …

Big thanks to Bengt Mårtensson!

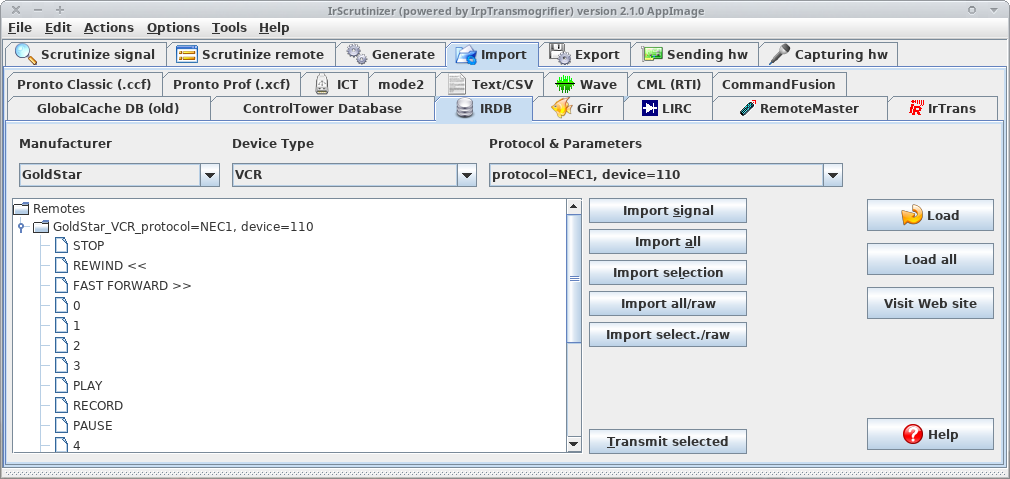

IrScrutinizer

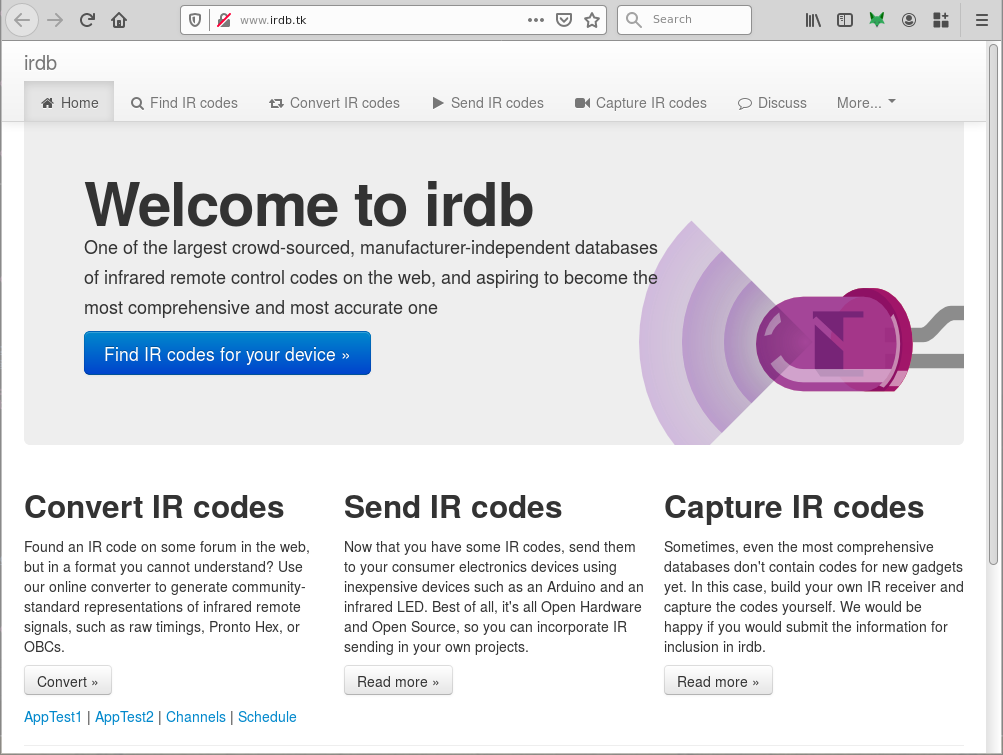

IrDB

Summary

• Used A/V gear: missing remote.
• Some functions require the remote.
• Backup & exchange IR-remote backups.
• Actually: Remote control stuff!
• …over the network, et al.

Questions?

Comments?
